AKEZO

PHOTONICS

PRECISION. PERFORMANCE. IMPACT

BUILDING TECHNOLOGIES

​

We develop advenced photonic technologies, components and systems for quantum sensing, detection and real-world applications.

Home 第二页 - 副本.png

QUANTUM SENSING COMPONENTS

High-Precision Standard Atomic Vapor Cells
The Core Enabling Technology for Next-Generation Quantum Systems

​

APPLICATION



Atomic vapor cells are mission-critical optical components at the heart of quantum technologies:



​​

These precision - engineered devices enable breakthough performance in aerospace, satellite navigation, telecommunication, artificial intelligence, and advanced healthcare applications.

SQUERE VAPOR CELLS

STANDARD VAPOR CELLS

SQUERE VAPOR CELLS

SYLINDER VAPOR CELLS

​

MATERIAL



  • SCHOTT BF33 borosilicate glass

  • Optical quartz glass

  • Alkali-resistant glass

​

TECHNICAL ADVANTAGES



  • Manufactured using optical bonding technology or integrated
    molding technology

  • Extremely low leakage rate, ensuring long service life for vacuum-
    based devices

  • High internal cavity dimensional precision, tolerance ≤ 0.05 mm

  • Visible light transmittance ≥ 90%, with optional anti-reflection coating

​PRODUCTINFORMATION
- VAPOR CELLS

​

PRODUCT INFORMATION TABLE NOTES

​​

  • All dimensions are mm,

  • The letter "t" indicates wall thinkness

  • Custom specifications and sizes can be desighed and manufactured according to customer requirements

Custom-Designed Vapor Cells and Glass Bulbs


LASER VACUUM CHAMBERS

Costom Vapor Cells and Bulbs

FLANGED VACUUM CELLS
- GLASS

FLANGED VACUUM CELLS
- METAL

MULTI-PASS CYLINDRICAL GAS CELL

MULTI-PASS RECTANGULAR GAS CELL

ANGLED VAPOR CELL

ANGLED VAPOR CELL

ALKALI METAL VAPOR BULB

MERCURY VAPOR BULB

ALGON, XENON, CALIBRATION GAS BULBS

CYLINDRICAL ELECTRODE VAPOR CELL

SQUARE ELECTRODE VAPOR CELL

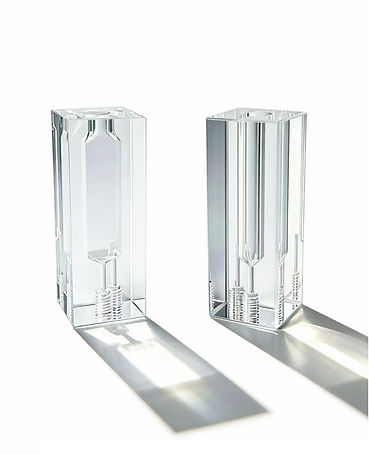

Sheath Flow Cells

​

APPLICATION



  • Five-part Hematology Analyzer

  • Molecular Cytometry Analyzern

  • Flow Cytometer

  • Particle Counter

  • Bacterial Separator

​​​

SHEATH FLOW CELLS

​

MATERIAL



  • Optical Synthetic Quartz

​​​

​

TECHINICAL ADVANTAGES

​

  • Enhanced optical bonding technology adopted

  • High strength, resistant to acid, alkali, and corrosion

  • Sheath flow channel ≥50μm, dimensional error ≤5μm

  • Four-side transparent, sheath flow detection zone surface finish Ra0.005

  • Appearance grade of the sheath flow detection zone complies with the 20-10 standard

  • Overall dimension error ≤0.05mm

  • Made of high-quality, non-fluorescent optical material

  • UV transmittance at 200nm ≥80%

  • External surface can be coated.

​​​

PROTEIN ANALYSIS FLOW CELLS

​

INLET END TAPERED HOLE

​​​

  • Concentricity error less than ±0.025mm,

  • Edge chipping less than 0.03mm,

  • Cone surface roughness better than Ra1.6​

​

OUTLET END TAPERED HOLE

​​​

  • Concentricity error less than ±0.025mm,

  • Edge chipping less than 0.03mm,

  • Cone surface roughness better than Ra1.6​

Precision Quartz Counting Chambers

​

APPLICATION



  • Urine Sediment Analyzers

  • Fecal Analysis Systems

  • Semen Analyzers

  • Microbial Detection Systems

  • Flow Imaging Systems

  • Particle Analysis Instruments

  • Environmental Monitoring Equipment

​​​

FLOW COUNTING CHAMBERS

Counting Flow Cells

​

APPLICATION



  • Urine Sediment Analysis

  • Fecal Analysis

  • Semen Analysis

  • Cell Counting

  • Microbial Detection

  • Environmental Monitoring

STATIC COUNTING CHAMBERS

​

MATERIAL



  • Optical glass, synthetic quartz

​

TECHNICAL ADVANTAGES



  • Enhanced optical bonding technology

  • Integrated structure with high mechanical strength, internal cavity pressure resistance up to 0.3 MPa

  • Flow channel optical path ≥ 50 μm, width 50 μm–10 mm, tolerance ≤ 5 μm

  • Detection area surface roughness: Ra 0.005

  • Detection area appearance grade: compliant with 20–10 optical standard

  • Overall dimensional tolerance: ≤ 0.05 mm

  • External pipelines can be connected via adhesive bonding or threaded interfaces

  • Manufactured using high-quality non-fluorescent optical materials

  • External optical coating available if required

PRODUCT INFORMATION - FLOW CELLS AND COUNTING CHAMBERS

​

PRODUCT INFORMATION TABLE NOTES

​​

  • All dimensions are mm,

  • Custom specifications and sizes can be desighed and manufactured according to customer requirements

Specific Gravity Cells

​

APPLICATION



  • Automated Urinalysis Systems

  • Clinical Diagnostics

  • Medical Laboratories

  • Veterinary Diagnostics

​​​

​

MATERIAL



  • Optical glass,

  • Synthetic quartz​

​

TECHINICAL ADVANTAGES



  • Utilizes enhanced optical bonding technology

  • High mechanical strength, resistant to acids, alkalis, and  corrosion

  • Optical inspection area appearance grade compliant with 20– 10 optical standard

  • Optical coating or blackening treatment available according to customer requirementss

​​​

URINE SPECIFIC GRAVITY CELLS

Precision Custom Glass Machining

​

APPLICATION



  • 96-Well ELISA Reader

​​​

​

MATERIAL



  • Optical glass,

  • Synthetic quartz​

​

TECHINICAL ADVANTAGES



  • Maximum workpiece dimensions: 500 × 500 × 50 mm

  • Custom-shaped hole depth: 0–100 mm

  • Custom-shaped hole diameter: 0–50 mm

  • Threaded hole range: M3–M20

  • Surface roughness: Ra 0.005 – Ra 6.4

​​​

96- WELL ELISA PLATE

Gravity Cells
Custom Glass Maching

SPECTROSCOPY INSTRUMENTS COMPONENTS

Cuvetts

​

TYPES



  • Standard cuvettes

  • Semi-micro cuvettes

  • Micro square cuvettes

  • Cylindrical cuvettes

  • Threaded cuvettes

  • Flanged vacuum cuvettes

  • Fluorescence Quartz Cuvettes

  • Custom Quartz Cuvettes

​​​

​

APPLICATION



  • UV-Vis Spectroscopy

  • Fluorescence Analysis

  • Clinical Diagnostics

  • Pharmaceutical Analysis

  • Environmental Monitoring

  • Food & Beverage Testing

  • Biotechnology & Life Science Research

  • Chemical Process Analysis

​​​

STANDARD CUVETTES

Cuvetts

CUSTOM CUVETTES

CUSTOM CUVETTES

​

MATERIAL



  • Optical Glass

  • Synthetic Quartz​​

​

TECHINICAL ADVANTAGES

​

  • Manufactured using optical bonding technology

  • High mechanical strength and excellent vibration resistance

  • Outstanding corrosion resistance, eliminating sample cross-contamination

  • High precision, optical path length tolerance ≤ 0.01 mm

  • UV transmittance at 200 nm ≥ 80%

  • Optical path length options: 0.1–200 mm

​​​

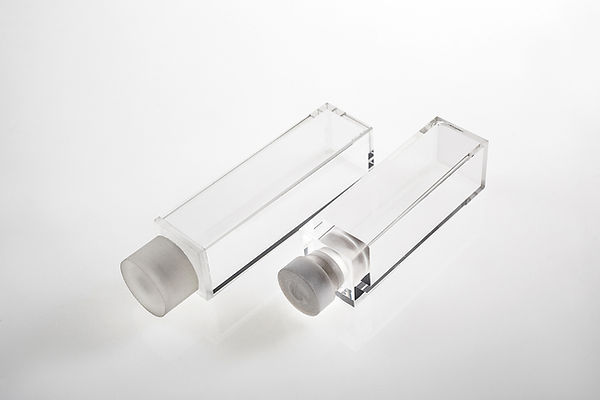

THREADED CUVETTES

Flow Cells

​

TYPES & APPLICATION



  • Micro-Volume Flow Cell  - DNA/RNA Quantification, Protein Analysis, Biotechnology Research

  • Black-Wall Flow Cell  - Fluorescence Spectroscopy, Raman Spectroscopy, High-Sensitivity Optical Detection

  • Standard Flow Cell - UV-Vis Spectroscopy, Clinical Chemistry Analysis

  • HPLC Flow Cell - High-Performance Liquid Chromatography (HPLC)

  • ICP Flow Cell - Online Elemental Analysis, Process Monitoring

  • Clinical Chemistry Flow Cell - Clinical Chemistry Analyzers,  (IVD) Systems

​​​

​

MATERIAL



  • Optical glass

  • Synthetic quartz

​​​

MICRO VOLUME FLOW CELLS

BLACK-WALLED AND LIGHT - SHIELDED FLOW CELLS

Flow Cells

ICP CONSUMABLES

​

APPLICATION



  • ICP–MS (Inductively Coupled Plasma Mass Spectrometry)

  • ICP–OES (Inductively Coupled Plasma Optical Emission Spectrometry)

  • AAS (Atomic Absorption Spectrometry)

  • AFS (Atomic Fluorescence Spectrometry​

​

MATERIAL



  • Optical glass,

  • Synthetic quartz​

​

THE FETURES OF TORCHS

​

  • Replacement products available for ICP instruments

  • Made from high-quality imported quartz, resistant to high-salt samples,  acids, and alkalis

  • Excellent concentricity of outer tube, intermediate tube, and inner tube, tolerance ≤ 0.1 mm

  • Easy ignition and capable of maintaining a stable plasma flame

  • Low gas consumption during operation, ensuring energy efficiency and reduced power requirements

  • Extended service life ​

ICP TORCH

ICP Consumables

​

MATERIAL



  • Optical glass,

  • Synthetic quartz​

​

THE FETURES OF NEBULIZERS

​

  • Compatible replacement models for Glass Expansion products

  • High-precision nozzle design, resistant to clogging

  • Inner and outer tube concentricity tolerance ≤ 0.02 mm

  • High nebulization efficiency with low sample consumption

  • Manufactured using high-quality imported glass, resistant to high-salt samples ​

NEBULIZER

​

MATERIAL



  • Optical glass,

  • Synthetic quartz​

​

THE FETURES OF TORCHS

​

  • Available in double-pass, cyclonic, and composite spray chamber designs

  • Manufactured using high-quality quartz tubing with excellent internal surface smoothness

  • High aerosol separation efficiency, improving instrument sensitivity

  • Low contamination risk, easy to disassemble and clean ​

DOUBLE- PASS SPARY CHAMBER

SPARY CHAMBER

SPARY CHAMBER

ChatGPT Image Jun 17, 2026, 10_09_06 AM.png

SEMICONDUCTOR QUQRTZ PRODUCTS

​

APPLICATION



  • Wafer Transfer Systems

  • Wafer Alignment Equipment

  • Wafer Inspection Systems

  • Wafer Cleaning Equipment

  • Lithography Equipment

  • Etching Systems

  • Thin Film Deposition Systems

  • Semiconductor Automation Equipment​

QUARTZ WAFER VACUUM CHUCK

Quartz Plates

​

APPLICATION



  • Photomask Substrates
    Semiconductor Processing Equipment
    Wafer Handling Systems
    Optical Windows
    Display Manufacturing
    Precision Optical Instruments
    Laser Systems
    Scientific and Analytical Equipment​

​

TECHINICAL ADVANTAGES



  • Advanced optical grinding and polishing technology
    CNC precision milling and grinding technology
    High-precision laser etching technology
    Enhanced optical bonding technology
    Photosensitive adhesive and glass powder bonding technology
    Flame sealing / fusion bonding technology​

SEMICONDUCTOR GRADE QUARTZ PLATES

SPECIALIZED INSTRUMENT LIGHT SOURCES & COMPONENTS

PULSED XENON LAMPS AND MODULES

​

APPLICATION



  • Benchtop and portable biochemical analyzers

  • Urine particle analyzers

  • Time-resolved immunofluorescence analyzers

  • Microplate readers

  • Water quality analyzers

  • Pollution gas analyzers​

​

PRODUCTS FEATURES



  • High radiant intensity with high peak flash power

  • Wide spectral range: 185–2000 nm
    Flash lifetime ≥ 10⁹ pulses

  • Excellent stability: CV ≤ 1.0%, P–P ≤ 4.2%

  • Low heat generation, ensuring stable optical system performance

  • Instant start, no warm-up required

  • Standard DB-9 connector, plug-and-play operation​

Deuterium Lamps are coming soon!

2W, 5W,10W
XENON LAMPS MODULES
XFM020
XFM050
XFM100

Light Sources Modules

2 W, 5 W, 10 W, and 20 W PULSED XENON LAMPS

Xenon Lamps
ChatGPT Image Jun 17, 2026, 10_09_06 AM.png
